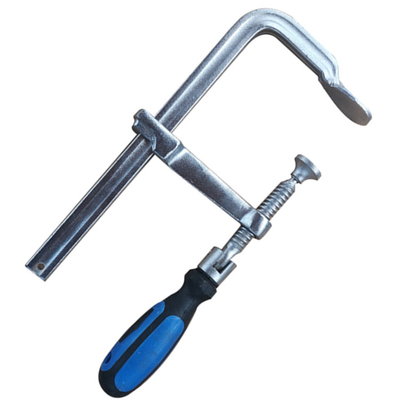

Plastic Pivot Handle Forged Rail Bar Steel F Clamps L Clamps for Woodworking Metalworking F Clamps

Plastic Pivot Handle Forged Rail Bar Steel F Clamps L Clamps for Woodworking Metalworking F Clamps

Plastic Pivot Handle Forged Rail Bar Steel F Clamps L Clamps for Woodworking Metalworking F Clamps
Plastic Pivot Handle Forged Rail Bar Steel F Clamps L Clamps for Woodworking Metalworking F Clamps Plastic Pivot Handle Forged Rail Bar Steel F Clamps L Clamps for Woodworking Metalworking F Clamps

Large Image :  Plastic Pivot Handle Forged Rail Bar Steel F Clamps L Clamps for Woodworking Metalworking F Clamps Get Best Price

Product Details:

Place of Origin: China
Brand Name: Chiree
Model Number: PH120

Payment & Shipping Terms:

Minimum Order Quantity: 500pcs
Price: US$ 7.8--8.5 per piece
Packaging Details: 8pcs per box
Delivery Time: 30 days
Payment Terms: T/T, Western Union
Supply Ability: 2000pcs per month
Detailed Product Description
Depth: 120mm Sliding Bar Size: 22X10.5mm
Material: Carbon Steel Finish: Galvanized

  • For all variable uses requiring sensivity and force
  • The variable handle position permits a sensible combination of handle and tommy bar With hollow-section bar and integral clamping arm
  • In cold-drawn profile-section steel, hot-forged to shape and with optimum heat treatment guarantees torsion-free transference of the clamping force
  • With forged clamping arm - fitted to slide perfectly
  • Movable pressure plate with protective cap
  • Deep trapezoidal thread for optimum transfer of force
  • In special steel, hardened, bright zinc-plated - for good protection against corrosion and non-dirtying surface
Povit Handle F Clamps Specifications
Throat Depth (mm) Jaw Opening (mm) Bar Size
(mm)
Weight
(kgs)
100 200 19.5x9.5 1.11
300 1.24
400 1.38
500 1.50
600 1.69
800 1.90
1000 2.15
1200 2.44
120 200 22x10.5 1.34
300 1.52
400 1.68
500 1.85
600 2.05
800 2.36
1000 2.70
1200 3.05

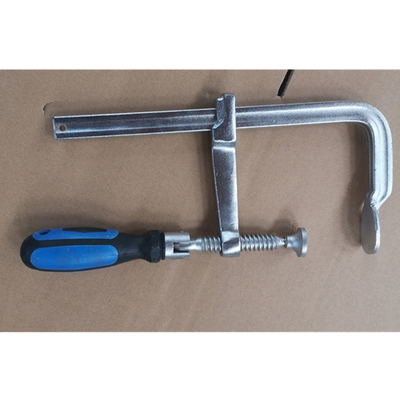

Plastic Pivot Handle Forged Rail Bar Steel F Clamps L Clamps for Woodworking Metalworking F Clamps 0Plastic Pivot Handle Forged Rail Bar Steel F Clamps L Clamps for Woodworking Metalworking F Clamps 1
