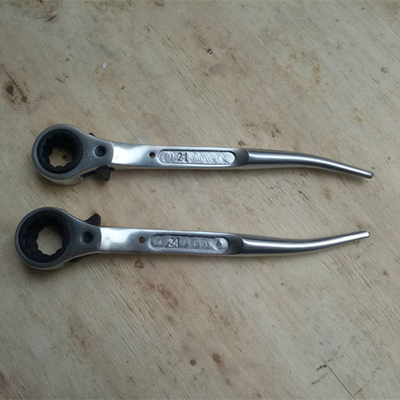

Cranked Taper End Reversible Bi-hex Two Sized Socket 21mm 24mm Scaffolding Ratchet Podger Wrench Spanner

All Products
Construction Spud Ratchets (52)
Reversible Ratchet Handles (9)
Clamps & Vises (13)
Hatchets & Axes (9)
Hammers (16)
Lineman's Ratchet Wrenches (3)
Scaffold Tools (25)
Best Products
Cranked Spud Ratchet 19/21mm Scaffolding Podger Ratchet Forged Shaft Stubby Podger Wrench

Cranked Spud Ratchet 19/21mm Scaffolding Podger Ratchet Forged Shaft Stubby Podger Wrench

Ratcheting Construction Wrench 19 x 24mm Forged Podger Handle Ratchet Wrench 315mm Long Black Color

Ratcheting Construction Wrench 19 x 24mm Forged Podger Handle Ratchet Wrench 315mm Long Black Color

I'm Online Chat Now

Cranked Taper End Reversible Bi-hex Two Sized Socket 21mm 24mm Scaffolding Ratchet Podger Wrench Spanner

Cranked Taper End Reversible Bi-hex Two Sized Socket 21mm 24mm Scaffolding Ratchet Podger Wrench Spanner
Cranked Taper End Reversible Bi-hex Two Sized Socket 21mm 24mm Scaffolding Ratchet Podger Wrench Spanner Cranked Taper End Reversible Bi-hex Two Sized Socket 21mm 24mm Scaffolding Ratchet Podger Wrench Spanner Cranked Taper End Reversible Bi-hex Two Sized Socket 21mm 24mm Scaffolding Ratchet Podger Wrench Spanner Cranked Taper End Reversible Bi-hex Two Sized Socket 21mm 24mm Scaffolding Ratchet Podger Wrench Spanner Cranked Taper End Reversible Bi-hex Two Sized Socket 21mm 24mm Scaffolding Ratchet Podger Wrench Spanner

Large Image :  Cranked Taper End Reversible Bi-hex Two Sized Socket 21mm 24mm Scaffolding Ratchet Podger Wrench Spanner

Product Details:
Place of Origin: China
Brand Name: No
Certification: N/A
Model Number: 2124
Payment & Shipping Terms:
Minimum Order Quantity: 300
Price: US$4.6/pc--US$4.9/pc
Packaging Details: 40pcs per carton
Delivery Time: 15 to 20 days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 2000pcs per month
Contact Now
Detailed Product Description
Length: 250mm Unit Weight: 0.4kgs
Drive Profile: 12Pt OGV Drive Type: Flush
Drive Material: Cr-V Surface Finish: Nickel Plated
Type: Ratchet Handle Wrench Material: Alloy
Application: Scaffold Wrench Color: Silver
Packing: Carton Feature: Strong Power
Oem: Accepted

Cranked Taper End Reversible Bi-hex Two Sized Socket 21mm 24mm Scaffolding Ratchet Podger Wrench Spanner



Features

  • Specifiically designed for Scafold and Steel workers
  • 2 sizes on a single spanner - flip over to use each size
  • Length 250mm
  • Wide spanner handle enables the user to apply high power comfortably without hurting the hand
  • Chrome Vanadium Alloy for superior strength and durability

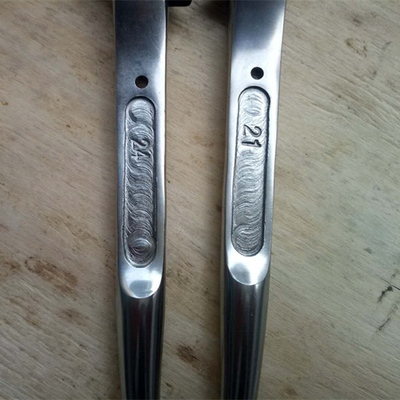

  • Expert Brand + Part Number + Size is stamped or etched onto the tools for easy selection and ID

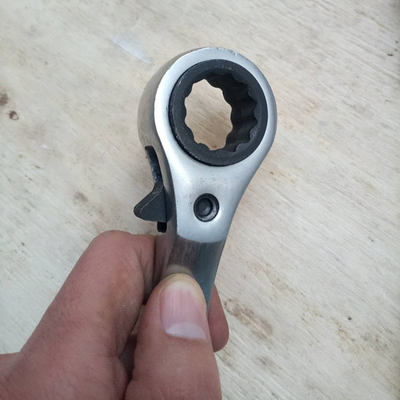

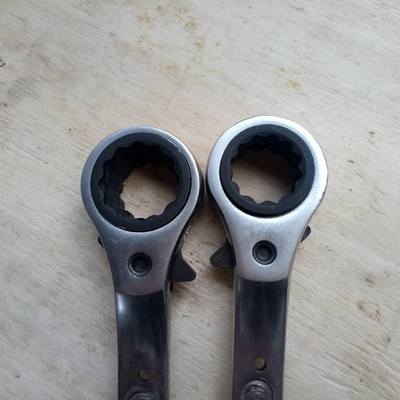

Ratchet Ring Ends

  • 32 teeth ratchet system so each tooth is larger for application of maximum turning power
  • Ideal for high power applications
  • Direction switch allows ratcheting action in both directions
  • 12Pt OGV / Maxi Drive profile applies force to the flats of the fastener (rather than weaker angled edges)                                          for increased turning power and less rounding off

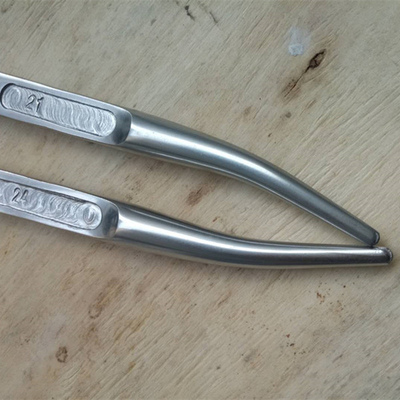

Podger End

  • Designed for pushing through holes in steel work to aid positioning
  • Can be used as a lever

Technical Conformity

  • Professional Tools with Lifetime Warranty
  • Max Torque: 650N/M

Size chart of podger bars

Size

(mm)

 Length (mm)

Weight

(kg)

 Tty/Box (pc) Qty/Carton (pc)
10×12 225 0.27 2 50
13×17 265 0.26 2 50
14×17 265 0.35 2 50
17×19 315 0.45 2 40
17×21 315 0.45 2 40
19×21 315 0.45 2 40
19×22 315 0.45 2 40
21×23 315 0.50 2 40
22×24 365 0.77 2 32
24×27 365 0.76 2 32
24×30 400 1.08 2 24
27×30 400 1.05 2 24
32×36 445 1.60 2 18
36×41 490 2.38 2 12
46×50 550 2.40 2 12



Cranked Taper End Reversible Bi-hex Two Sized Socket 21mm 24mm Scaffolding Ratchet Podger Wrench Spanner 0

Cranked Taper End Reversible Bi-hex Two Sized Socket 21mm 24mm Scaffolding Ratchet Podger Wrench Spanner 1

Cranked Taper End Reversible Bi-hex Two Sized Socket 21mm 24mm Scaffolding Ratchet Podger Wrench Spanner 2

Cranked Taper End Reversible Bi-hex Two Sized Socket 21mm 24mm Scaffolding Ratchet Podger Wrench Spanner 3
