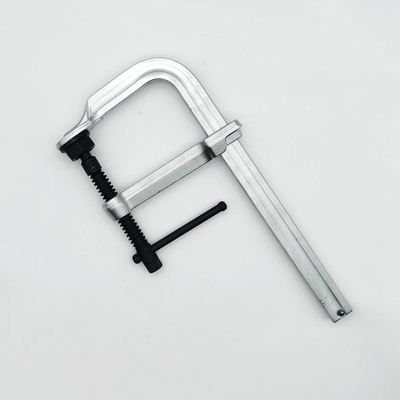

Tommy Bar Screw F Clamp Cold Drawn Steel L Rail Clamps with Forged Moving Jaw Replaceable Morpad for Welding

I'm Online Chat Now

Tommy Bar Screw F Clamp Cold Drawn Steel L Rail Clamps with Forged Moving Jaw Replaceable Morpad for Welding

Tommy Bar Screw F Clamp Cold Drawn Steel L Rail Clamps with Forged Moving Jaw Replaceable Morpad for Welding
Tommy Bar Screw F Clamp Cold Drawn Steel L Rail Clamps with Forged Moving Jaw Replaceable Morpad for Welding Tommy Bar Screw F Clamp Cold Drawn Steel L Rail Clamps with Forged Moving Jaw Replaceable Morpad for Welding Tommy Bar Screw F Clamp Cold Drawn Steel L Rail Clamps with Forged Moving Jaw Replaceable Morpad for Welding Tommy Bar Screw F Clamp Cold Drawn Steel L Rail Clamps with Forged Moving Jaw Replaceable Morpad for Welding Tommy Bar Screw F Clamp Cold Drawn Steel L Rail Clamps with Forged Moving Jaw Replaceable Morpad for Welding

Large Image :  Tommy Bar Screw F Clamp Cold Drawn Steel L Rail Clamps with Forged Moving Jaw Replaceable Morpad for Welding

Product Details:
Place of Origin: China
Brand Name: Chiree
Model Number: FH1240
Payment & Shipping Terms:
Minimum Order Quantity: 500pcs
Price: FOB Qingdao USD 10.3 --15per piece
Packaging Details: 8pcs per box
Delivery Time: 30 days
Payment Terms: T/T
Supply Ability: 5000pcs per month
Detailed Product Description
Material: Carbon Steel Surface Finish: Galvanized
Length Range: 300--1200mm Sliding Bar Size: 29.7x14.7mm

Features:

* Tempered drop forged sliding arm reduces clamping set up time – ideal for high volume production work
* Nickel-chrome plated rails are heat formed from cold drawn profiled steel
* Extra deep throats for maximum versatility
* High carbon Acme threaded spindle is spatter resistant
* Rails, sliding arms, and spindles 100% heat treated
* Hex shape and swivel pads
* Increased clamping pressure and larger sizes for a wider range of applications
* Heavy duty swivel pads
Specifications Jaw Opening Weight/kgs Qty/Carton
F Clamps with Hex Pad
Depth: 120mm
Rail Size: 29.7mm×14.7mm
Finish: Electro-galvanized Material: High strength heat treated steel
Load Rating: 21Kn
200mm (8") 2.36 8
300mm (12") 2.56 8
400mm (16") 2.86 8
500mm (20") 3.18 8
600mm (24") 3.34 8
800mm (32") 4.10 6
1000mm (40") 4.70 6
1200mm (48") 5.30 6
F Clamps with Hex Pad
Depth: 140mm
Rail Size: 29.7mm×14.7mm
Finish: Electro-galvanized Material: High strength heat treated steel
Load Rating: 21Kn
200mm (8") 2.10 8
300mm (12") 2.60 8
400mm (16") 3.00 8
500mm (20") 3.22 8
600mm (24") 3.52 8
800mm (32") 4.20 6
1000mm (40") 4.78 6
1200mm (48") 5.40 6
